Manual and Power Forming Rollers

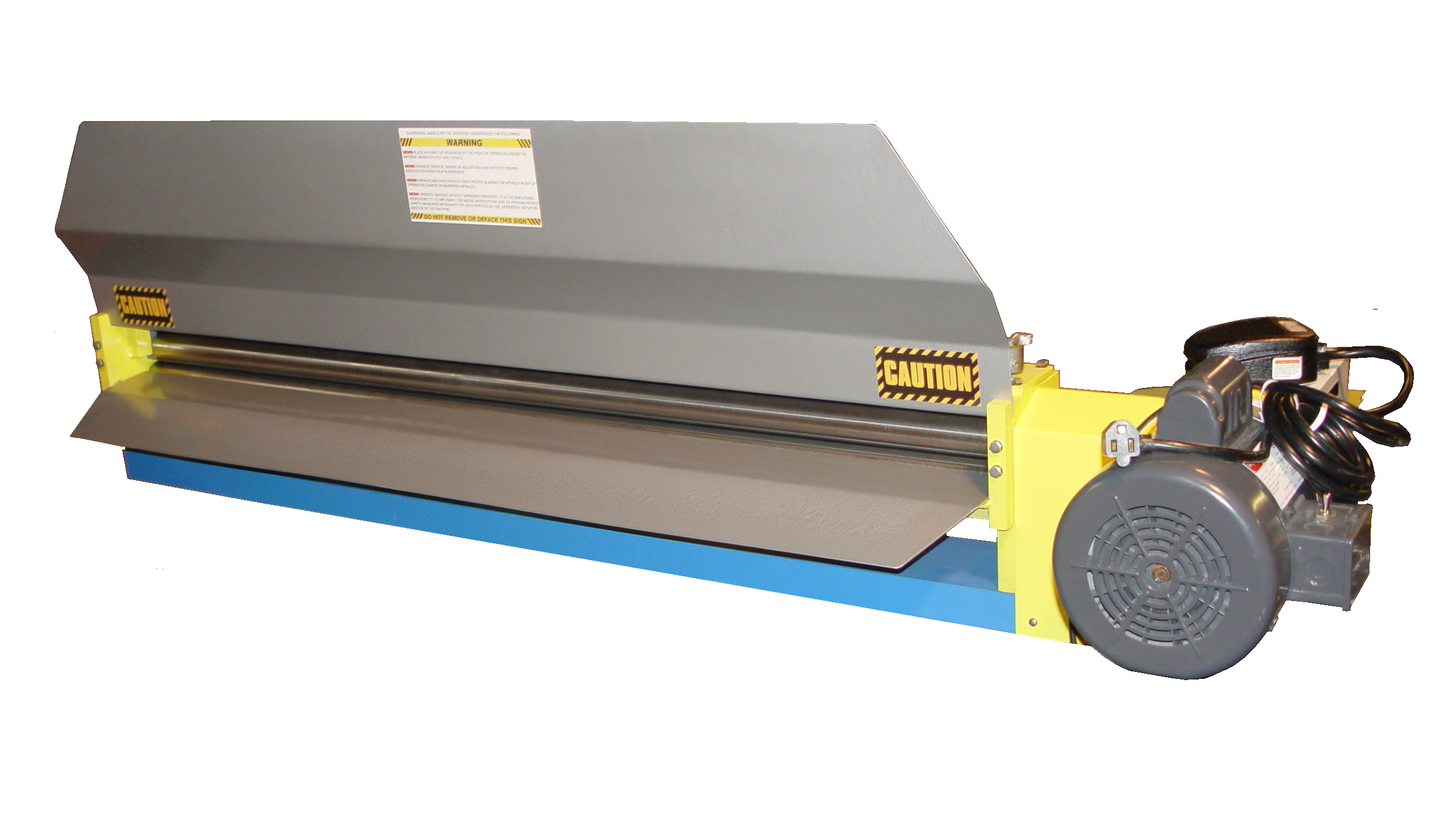

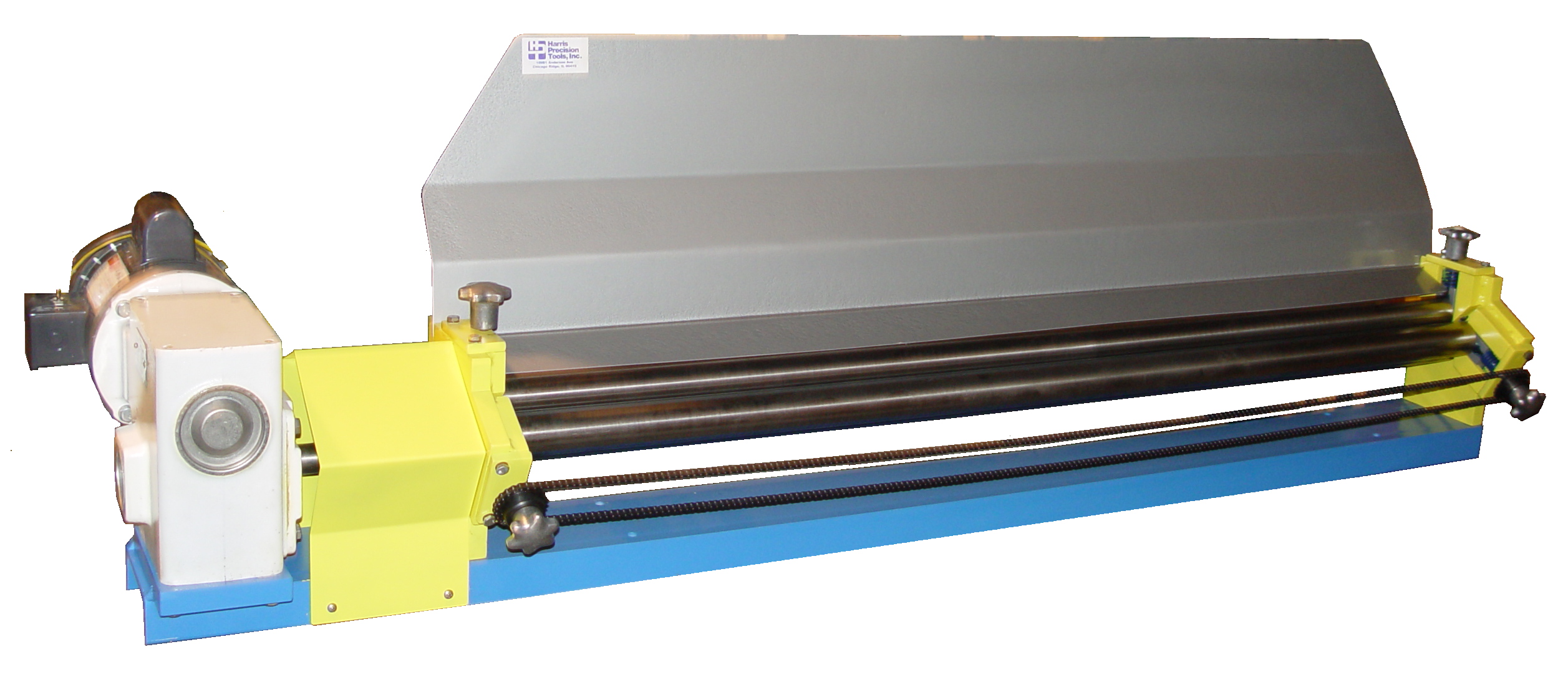

The Harris Precision Power Forming Rollers are the finest rollers in the industry capable of forming an 11" piece of jacketing into a perfect cylinder with a 1-1/2" lap. Features turned, ground, and polished tool steel rollers and an automatic kick out plate that allows hands free material exit. All three rolls are gear driven for no slip positive forming ability and high quality bronze sleeve bushings ensure precision forming. Available in 26", 38", or 50" model for wider roll stock. Manual Rollers operated by hand crank also available.


Automatic Kick Out Plate
All 3 Rolls Gear Driven
Foot Control


Rolling Capacity Thickness Includes the following applications:
Up to .032 Aluminum
Up to .016 Stainless Steel

26",38", or 50" Wide Stock (Specify When Ordering)

Minimum Material Length with 1-1/2" lap is 11"
Maximum Material Length Unlimited

Comes With One Year Limited Warranty

Available Options:

Single Side Roll Adjustment
